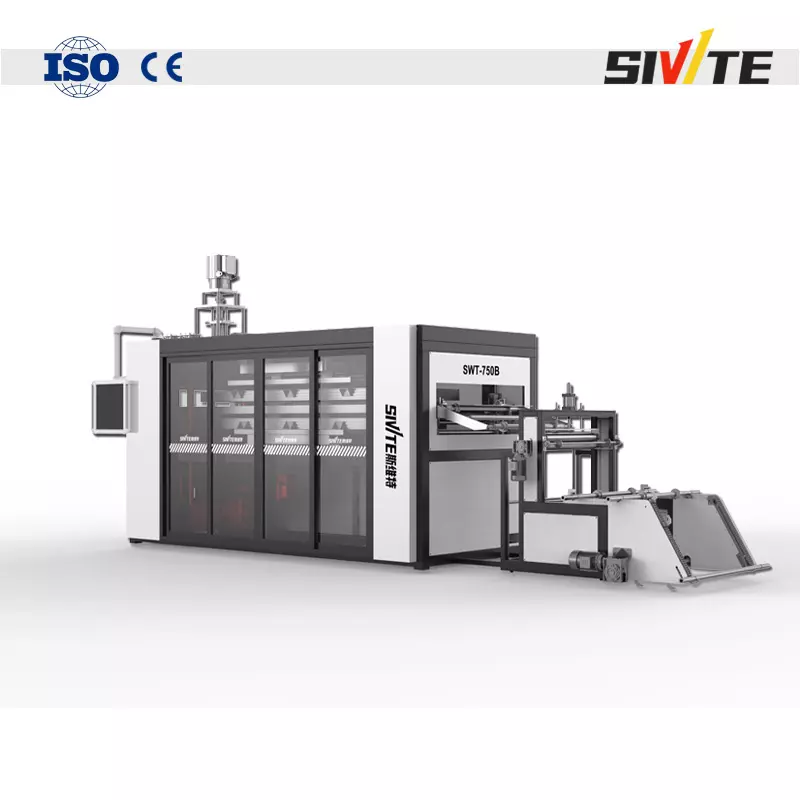

750 fully automatic plastic cup making machine

>> Full servo drive, no noise, no vibration, good molding, fast speed;
>> The whole machine has a compact structure and occupies a small area;
>> Collecting and feeding sheets, heating, stretching, molding, and trimming are completed at one time;
>> The main machine is a 5-guide column structure, the guide column material is 40Cr steel quenched and tempered, hard chrome plated on the outside, good rigidity, precise guiding performance, wear resistance, and helps the service life of the mold cut;
>> The electric furnace adopts a one-to-one intelligent temperature control system, the heater automatically controls the temperature, and the single-phase voltage regulation module has no contact output, which is stable and high-precision, and the temperature control error is ±1℃. There are 8 zones on the upper and lower sides, and the upper electric furnace mouth moves forward toward the mold to achieve seamless connection between the mold and the electric furnace. The connection part between the upper electric furnace and the mold is adjustable to reduce the temperature difference between the front and rear rows of the product;
>> The feeding chain adopts a toothed double-row roller chain, the chain track has a built-in cooling water channel, high cooling efficiency, and water saving. The inner cover stainless plate and the guide chain track are quenched with 40Cr, with high working surface hardness and ultra-long service life;
>> The feeding power adopts a variable frequency motor and a hard-toothed Taiwan brand reducer, with high control accuracy, accurate positioning, and quick start and stop response;
>> The rear end is equipped with an automatic scrap winding device, with a maximum winding diameter of 1000mm, and easy winding;

Cutting-Edge Technology: Smart Automation & Energy Efficiency
Equipped with a state-of-the-art PLC (Programmable Logic Controller) and HMI (Human-Machine Interface), the 750 machine offers intuitive operation and real-time monitoring of production parameters. The fully automated process includes sheet feeding, heating, forming, punching, stacking, and waste removal, ensuring minimal human intervention. Advanced servo motors and precision temperature control systems reduce energy consumption by up to 30% compared to conventional models, aligning with global sustainability standards. The machine’s quick mold-change system further enhances productivity, allowing rapid switching between cup sizes and designs.

The whole machine adopts full servo drive system control, which is energy-saving and environmentally friendly, with accurate positioning, fast molding speed and stable operation. It is mainly used for the production of disposable cup-shaped plastic products such as disposable milk tea cups, yogurt cups, jelly cups, ice cream cups, coffee cups, plastic bowls, etc. It is suitable for PET, PP, PS, PLA... and other plastic sheets.

01.

Fully Automatic feeding



Double material bar automatic mechanical loading roller device, roller diameter 1100mm, can bear a maximum weight of 500kg sheet coil

02.

One-to-one precise temperature control



Three-stage ceramic heating, one-to-one precise temperature control (temperature difference ±1°C), easy adjustment, fast heating and low energy consumption, intelligent automatic compensation control, effective energy saving of more than 30%

03.

PLC human-machine interactive control system



tThe human-machine interface uses a 10.1-inch color touch screen, PLC integrated module control, and an industrial touch display as the HMI. The multi-language environment can be customized



04.

In-mold cutting_High-speed cup making mold



This machine adopts In-mold cutting_High-speed cup making mold with integrated cutting. Only one station is needed to complete the cup making steps. It is efficient and stable, and the product quality is better.

05.

The robot automatically stacks the



Standard robot for picking up materials, with higher precision and efficiency, automatic counting, automatic stacking and convenient packaging



As a leading manufacturer of thermoforming machines and sheet extrusion equipment, we have a strong technical team and excellent quality management system. With a factory covering [10000+ square meters], vertically integrated production lines, combined with advanced automation technology, superb craftsmanship and strict quality control, we provide high-performance machinery to customers around the world.

Key Features: Durability, Speed, and Versatility
High-Speed Production: Capable of producing up to 50 cycles per minute, the 750 model ensures output of 1,800–2,200 cups/hour (depending on cup size), maximizing throughput for high-volume orders.
Multi-Layer Heating System: Uniform heating technology guarantees optimal material distribution, eliminating defects like warping or uneven thickness.
Durable Construction: Heavy-duty steel frame and corrosion-resistant components ensure longevity even in demanding environments.
Adaptive Tooling: Compatible with a wide range of molds (PP, PS, PET materials) to produce cups from 50ml to 750ml, with customizable shapes and rim designs.
Waste Reduction: Integrated trim recycling system repurposes excess material, lowering raw material costs by up to 15%.

Enhanced Safety and User-Friendly Design
Safety is prioritized with emergency stop buttons, protective guards, and fail-safe sensors that prevent operational errors. The machine’s ergonomic layout and touchscreen interface simplify setup and maintenance, reducing training time for operators. Self-diagnostic functions alert users to potential issues, while optional IoT connectivity enables remote troubleshooting and performance analytics for proactive maintenance.

Applications: Meeting Diverse Industry Needs
The 750 Fully Automatic Plastic Cup Making Machine is ideal for manufacturers supplying:
Food Service: Disposable cups for beverages, ice cream, and takeaway containers.
Healthcare: Sterile packaging for medical or pharmaceutical use.
Retail & Hospitality: Custom-branded cups for restaurants, cafes, and events.
Industrial Packaging: Durable containers for chemicals or automotive products.
Its flexibility and precision make it a turnkey solution for startups and established enterprises alike.

 After-Sales Support & Warranty
We stand behind our product with comprehensive technical support, including on-site installation, operator training, and 24/7 customer service. The machine comes with a 2-year warranty on critical components, alongside readily available spare parts to minimize downtime. Regular software updates ensure your equipment stays at the forefront of thermoforming technology.

The 750 fully automatic plastic cup making machine combines speed, precision and sustainability to boost your production capabilities. Get a custom quote, schedule an on-site demonstration or discuss a custom solution for your business today. Let us help you stay ahead in the competitive packaging industry!
