How are sauce cups produced? The most efficient production equipment

In today's fast-food world, disposable sauce cups, a crucial component of food packaging, face a significant impact on consumer experience. So, how do these everyday small sauce cups go from raw materials to finished product? What production equipment offers the most efficient production? This article will delve into the entire sauce cup production process, focusing on the core role of multi-station positive and negative pressure thermoforming machines in this process, as well as the three key factors influencing sauce cup quality.

Ⅰ. Efficient Production Equipment: The Superior Performance of Multi-Station Positive and Negative Pressure Thermoforming Machines
Sauce cup production relies on efficiency, hygiene, and consistency. In modern production lines, disposable sauce cup thermoforming machines are key to achieving these goals. Specifically, multi-station positive and negative pressure thermoforming machines transform plastic sheets into high-quality disposable sauce cups through fully automated processes including heating, forming, cutting, and stacking.

1. Equipment Working Principle and Process
The multi-station positive and negative pressure thermoforming machine's workflow begins with the automatic loading of plastic sheets. Food-grade PP or PET sheets are fed into the machine and first pass through a heating zone, where the material is softened at a precisely controlled temperature. The softened sheet then enters the forming zone, where both positive and negative pressure are applied: positive pressure presses the sheet into the mold cavity to form the cup body, while negative pressure holds the sheet in place, ensuring perfect detail.
The formed sheet then enters the cutting station, where a high-speed, precise punching system separates the continuous sheet into individual sauce cups. Finally, the finished products are neatly stacked by an automated stacking system and directly shipped for packaging. The entire production process is fully automated, minimizing manual intervention and ensuring consistent product hygiene.
2. Equipment Advantages

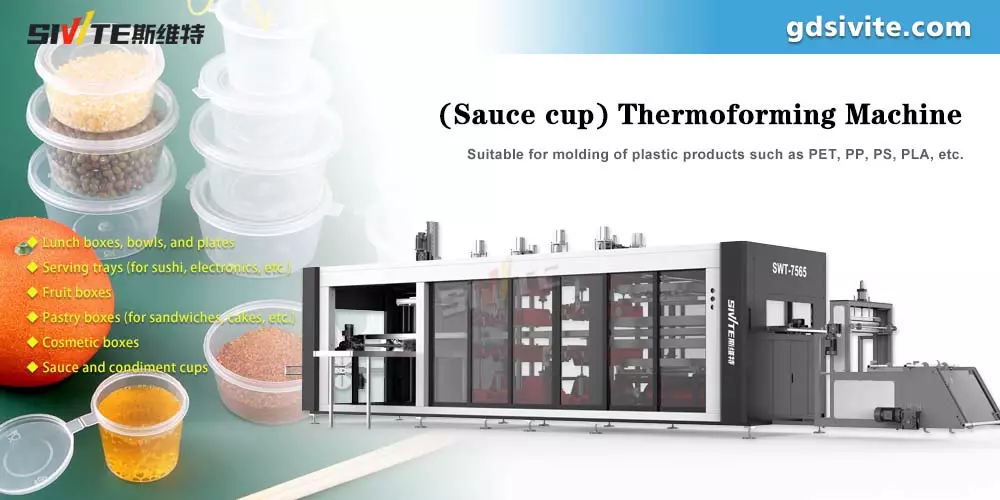

The greatest advantage of this disposable sauce cup thermoforming machine lies in its high production capacity. Compared to traditional single-station equipment, the multi-station design enables simultaneous execution of different processes, significantly improving production efficiency. For example, the advanced SWT-7565 three-station thermoforming machine can produce hundreds of thousands of sauce cups per hour, far exceeding the capacity of traditional equipment.
In addition, the combined positive and negative pressure technology ensures precise and consistent product forming. Both the thickness uniformity of the cup body and the smoothness of the cup rim can be effectively controlled. This is crucial for subsequent sealing and user experience. The fully enclosed production environment also meets food packaging hygiene standards, preventing secondary contamination during the production process.

II. Three Key Factors for Improving Sauce Cup Quality
To produce high-quality sauce cups, simply possessing advanced equipment is not enough. The following three key factors directly impact the quality of the final product:
1. Mold Design: Innovative Upper Mold Forming, Lower Mold Assistance
The mold is the foundation of sauce cup molding, and its design directly affects the molding quality and demolding efficiency. High-quality disposable sauce cups typically utilize an "upper mold forming, lower mold assist" design. This design ensures more uniform force distribution during the molding process, reducing stress concentration and weak points.
The upper mold performs the primary molding work, ensuring a consistent cup shape through precise temperature and pressure control. The lower mold provides positioning and support, ensuring a smoother demolding process and preventing product deformation. This design is particularly suitable for sauce cup lids with snap-fit ​​mechanisms, ensuring a perfect fit between the lid and the cup body. Excellent mold design also reduces material waste and lowers production costs.
2. Raw Material Selection and Customized Sheet Thickness
The raw material selection for sauce cups not only affects food safety but also directly impacts performance. Food-grade polypropylene (PP) and polystyrene (PET) are common materials for sauce cups, each with its own unique characteristics: PP offers high-temperature resistance and is suitable for hot filling, while PET offers high transparency, excellent display quality, and a high recycling rate.

However, the key is to utilize different sheet thicknesses based on the different functional requirements of the cup body and lid. During the molding process, the cup body requires a large stretch ratio, necessitating a material with good ductility; the lid, on the other hand, must maintain a certain degree of rigidity to ensure a tight seal after snapping on.

Using a uniform sheet thickness often results in the lid being too soft to effectively seal, or the cup body being too rigid to form. Professional manufacturers customize sheet thicknesses based on the different functions of the cup body and lid to ensure a perfect fit and a good seal, preventing leakage.

3. Manufacturer Selection: Experience and Technology as a Double Guarantee
Choosing an experienced equipment manufacturer is the third key factor in ensuring the quality of sauce cups. In this field, SIVITE Machinery, with over 20 years of industry experience, has become the preferred partner for many food packaging companies.
This long-term expertise has enabled SIVITE to develop a deep understanding of the nuances of sauce cup production. Their equipment is not only technologically advanced but also demonstrates exceptional stability, ensuring consistent product quality over extended periods of continuous production. Compared to newer manufacturers, equipment from established manufacturers has lower failure rates, easier maintenance, and higher overall production efficiency.

Ⅲ. SIVITE Machinery: A Leading Brand in China's Sauce Cup Production Equipment (Thermoforming Machine) Industry

In the field of disposable sauce cup production equipment, SIVITE Machinery has established itself as an industry leader thanks to its technological innovation and extensive experience. Its independently developed and manufactured multi-station positive and negative pressure thermoforming machines are specifically designed for high-end sauce cup production and have been awarded multiple patents.

SIVITE's disposable sauce cup thermoforming machines feature a modular design, allowing users to flexibly adjust equipment configuration based on production needs. An intelligent temperature control system ensures precise and stable forming temperatures, while adaptive cutting technology automatically adjusts parameters based on material characteristics, ensuring smooth, burr-free cut edges. These meticulously designed details contribute to the high quality of the final product.

Furthermore, SIVITE's equipment is equipped with an advanced AI human-machine interaction system, enabling real-time monitoring of production data and remote fault diagnosis. This not only enhances operational stability but also provides big data support for production management, helping companies optimize production processes and reduce operating costs.

Customized solution suggestions
Choosing the right production equipment is crucial for efficient sauce cup production. Multi-station positive and negative pressure thermoforming machines ensure high product quality and efficient production through efficient automated processes. Mold design, raw material selection, and manufacturer selection all complement each other and collectively determine the quality of the final product.
If you're looking for efficient and stable sauce cup production equipment, SIVITE Machinery is your trusted partner. With over 20 years of industry experience, we provide top-quality equipment and solutions to help you gain a competitive advantage in the market.
