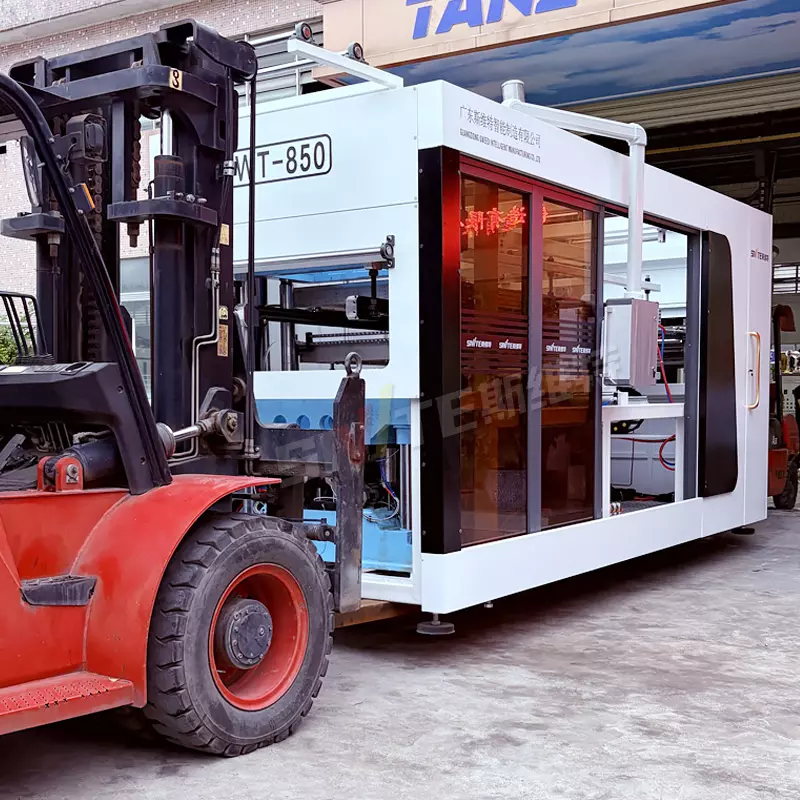

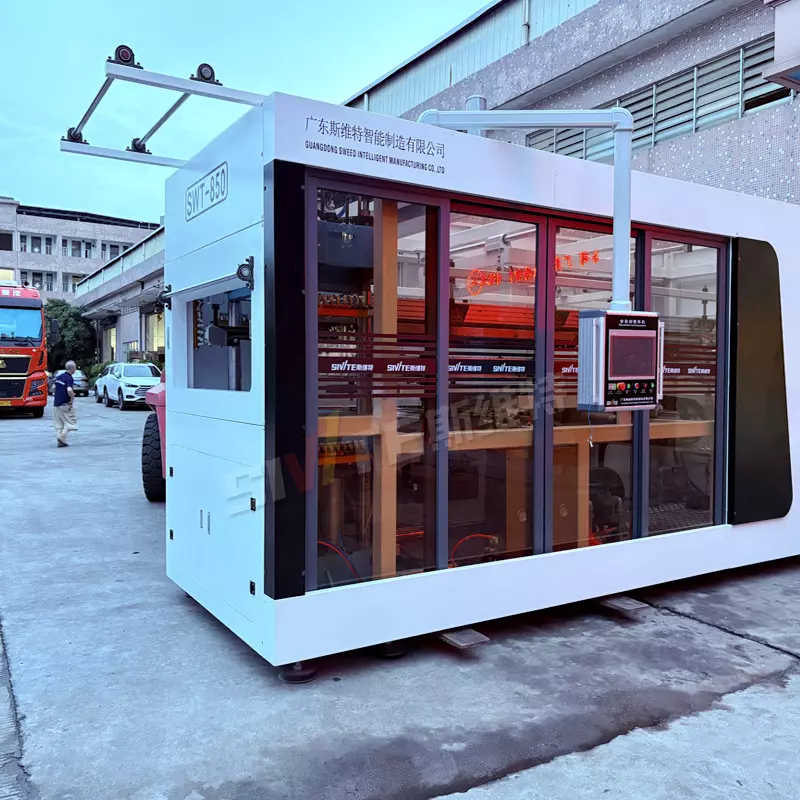

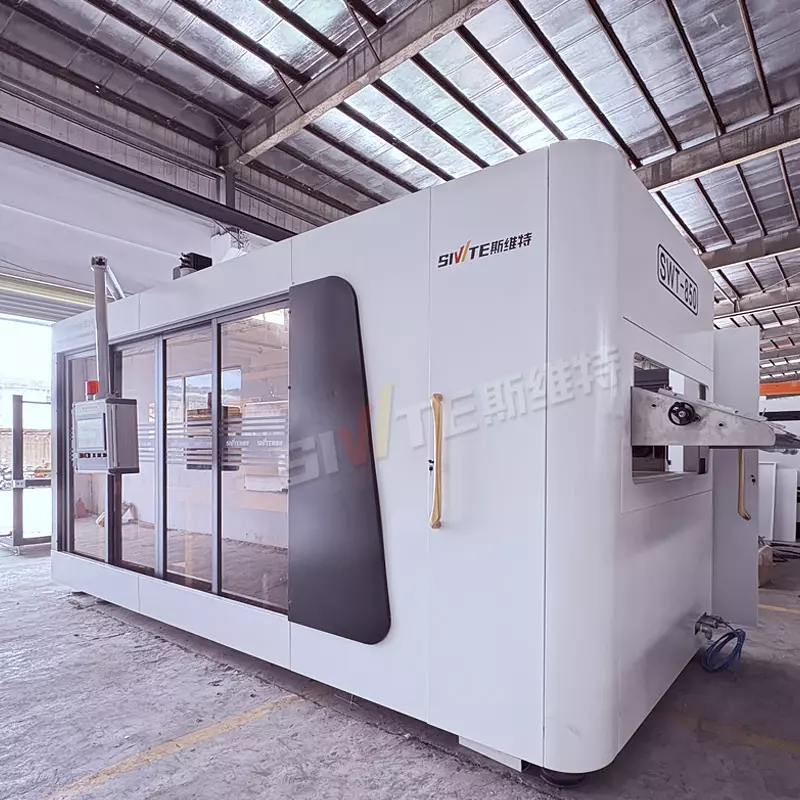

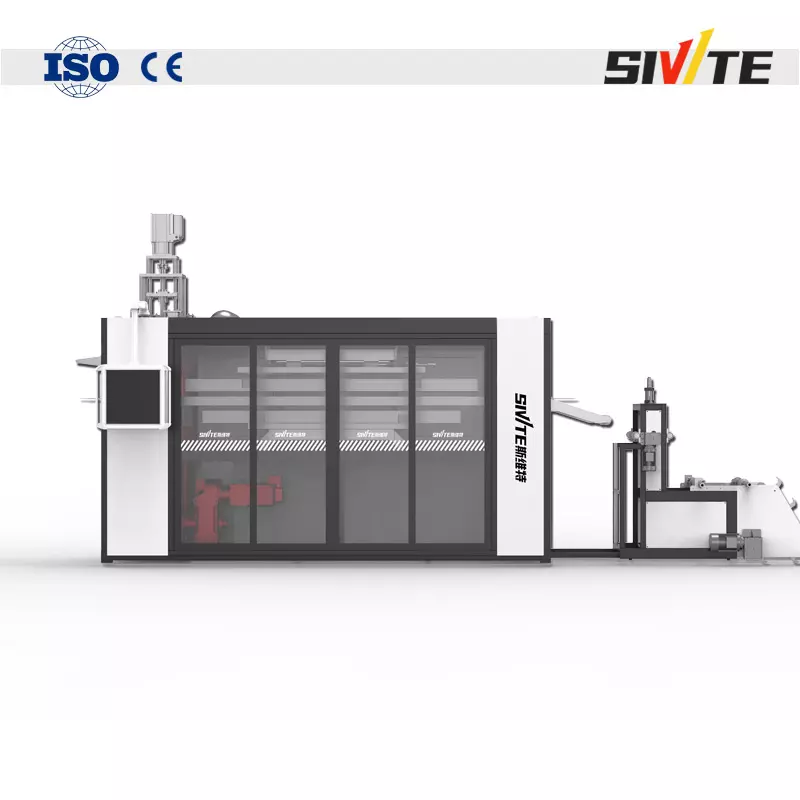

850 Hydraulic Servo Plastic Cup Making Machine

>> Full servo drive, no noise, no vibration, good molding, fast speed;
>> The whole machine has a compact structure and occupies a small area;
>> Collecting and feeding sheets, heating, stretching, molding, and trimming are completed at one time;
>> The main machine is a 5-guide column structure, the guide column material is 40Cr steel quenched and tempered, hard chrome plated on the outside, good rigidity, precise guiding performance, wear resistance, and helps the service life of the mold cut;
>> The electric furnace adopts a one-to-one intelligent temperature control system, the heater automatically controls the temperature, and the single-phase voltage regulation module has no contact output, which is stable and high-precision, and the temperature control error is ±1℃. There are 8 zones on the upper and lower sides, and the upper electric furnace mouth moves forward toward the mold to achieve seamless connection between the mold and the electric furnace. The connection part between the upper electric furnace and the mold is adjustable to reduce the temperature difference between the front and rear rows of the product;
>> The feeding chain adopts a toothed double-row roller chain, the chain track has a built-in cooling water channel, high cooling efficiency, and water saving. The inner cover stainless plate and the guide chain track are quenched with 40Cr, with high working surface hardness and ultra-long service life;
>> The feeding power adopts a variable frequency motor and a hard-toothed Taiwan brand reducer, with high control accuracy, accurate positioning, and quick start and stop response;
>> The rear end is equipped with an automatic scrap winding device, with a maximum winding diameter of 1000mm, and easy winding;

Advanced Servo-Driven Performance
At the heart of the 850 machine lies its fully servo-controlled system, which replaces traditional hydraulic or mechanical drives with high-torque servo motors. This technology enables precise control over every stage of production—from material feeding and heating to molding and cutting. With servo-driven automation, the machine achieves up to 40% energy savings compared to conventional models, while operating at speeds of 60-80 cycles per minute. The elimination of mechanical wear and tear also extends the machine’s lifespan, ensuring a rapid return on investment.

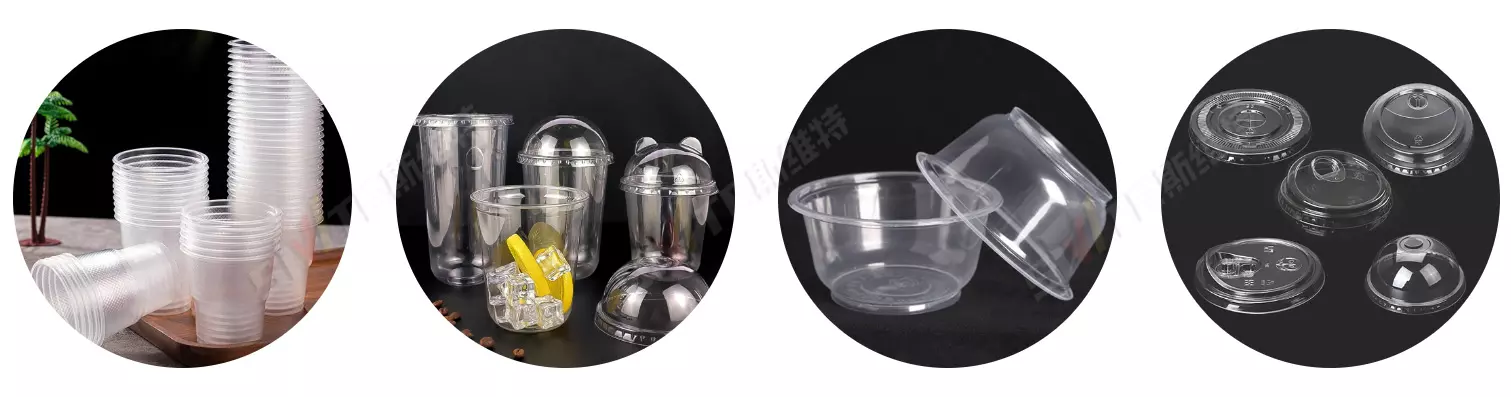

The whole machine adopts full servo drive system control, which is energy-saving and environmentally friendly, with accurate positioning, fast molding speed and stable operation. It is mainly used for the production of disposable cup-shaped plastic products such as disposable milk tea cups, yogurt cups, jelly cups, ice cream cups, coffee cups, plastic bowls, etc. It is suitable for PET, PP, PS, PLA... and other plastic sheets.

01.

Fully Automatic feeding



Double material bar automatic mechanical loading roller device, roller diameter 1100mm, can bear a maximum weight of 500kg sheet coil

02.

One-to-one precise temperature control



Three-stage ceramic heating, one-to-one precise temperature control (temperature difference ±1°C), easy adjustment, fast heating and low energy consumption, intelligent automatic compensation control, effective energy saving of more than 30%

03.

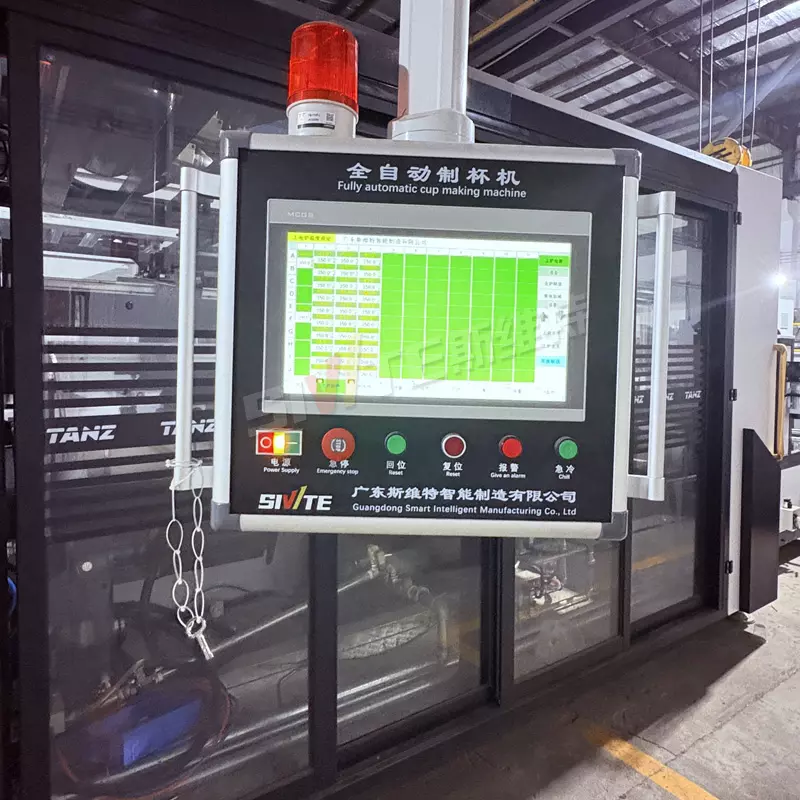

PLC human-machine interactive control system



tThe human-machine interface uses a 10.1-inch color touch screen, PLC integrated module control, and an industrial touch display as the HMI. The multi-language environment can be customized



04.

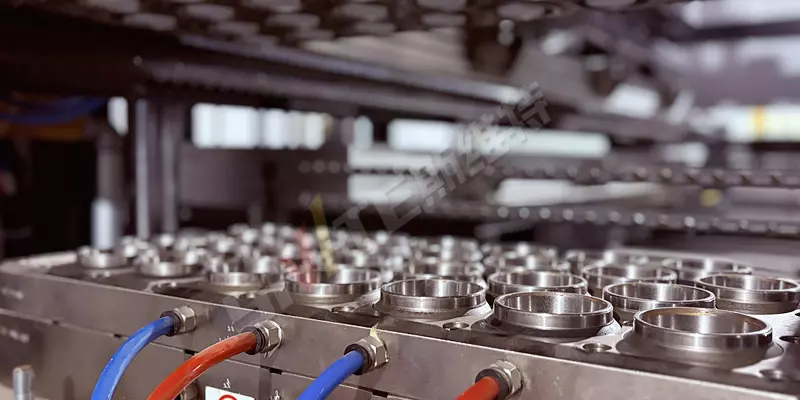

In-mold cutting_High-speed cup making mold



This machine adopts In-mold cutting_High-speed cup making mold with integrated cutting. Only one station is needed to complete the cup making steps. It is efficient and stable, and the product quality is better.

05.

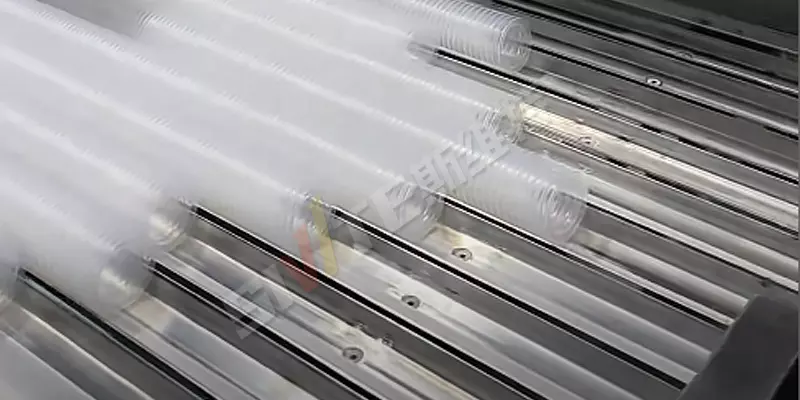

The robot automatically stacks the



Standard robot for picking up materials, with higher precision and efficiency, automatic counting, automatic stacking and convenient packaging



As a leading manufacturer of thermoforming machines and sheet extrusion equipment, we have a strong technical team and excellent quality management system. With a factory covering [10000+ square meters], vertically integrated production lines, combined with advanced automation technology, superb craftsmanship and strict quality control, we provide high-performance machinery to customers around the world.

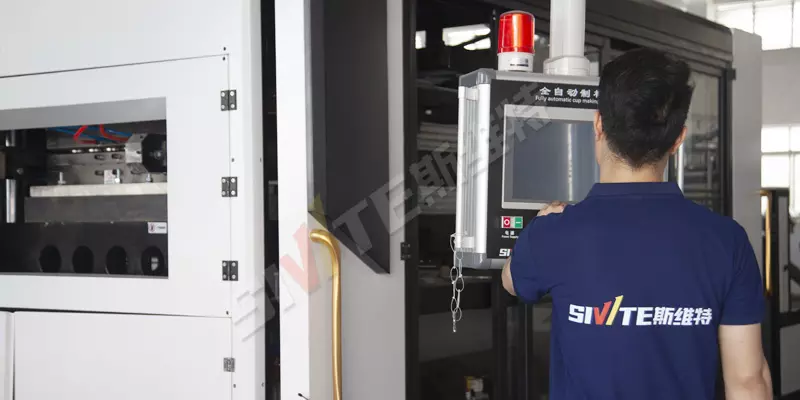

Smart PLC Control for Flawless Customization
Equipped with a user-friendly PLC (Programmable Logic Controller) and HMI (Human-Machine Interface), the 850 allows operators to adjust parameters such as temperature, pressure, and cycle times with ease. Pre-programmed settings for different cup sizes (50ml to 1000ml) and materials (PP, PS, PET) streamline setup, reducing downtime between production runs. Real-time monitoring and fault diagnostics ensure minimal interruptions, while the machine’s thermal stability guarantees uniform wall thickness and crystal-clear product finishes.
Versatility for Diverse Applications
The 850 Full Servo Plastic Cup Making Machine is designed to handle a wide range of applications, from single- and double-layer cups to eco-friendly biodegradable containers. Its modular design supports quick mold changes, enabling manufacturers to pivot between products like yogurt cups, takeaway containers, or disposable drinkware without costly retooling. Compatible with recycled materials, this machine aligns with global sustainability trends, helping brands reduce their environmental footprint without compromising output quality.
Durability and Low Maintenance
Constructed with hardened steel components and corrosion-resistant alloys, the 850 is built to withstand 24/7 operation in demanding industrial environments. The servo system’s oil-free operation eliminates leaks and reduces maintenance requirements, while self-lubricating guides and precision bearings ensure smooth, noise-free performance. Routine checks are simplified through accessible panels and automated lubrication reminders, keeping operational costs low and productivity high.
Global Compliance and After-Sales Support
The 850 Full Servo Plastic Cup Making Machine complies with international safety and quality standards, including CE certification. Our team provides comprehensive after-sales support, including remote troubleshooting, on-site training, and a 1-year warranty on critical components. Partner with us to elevate your production capabilities—contact our experts today to schedule a demo or customize this machine for your specific needs!
Boost efficiency, cut costs, and lead your market with the 850 Full Servo Plastic Cup Making Machine—your ultimate solution for premium-quality packaging production.
