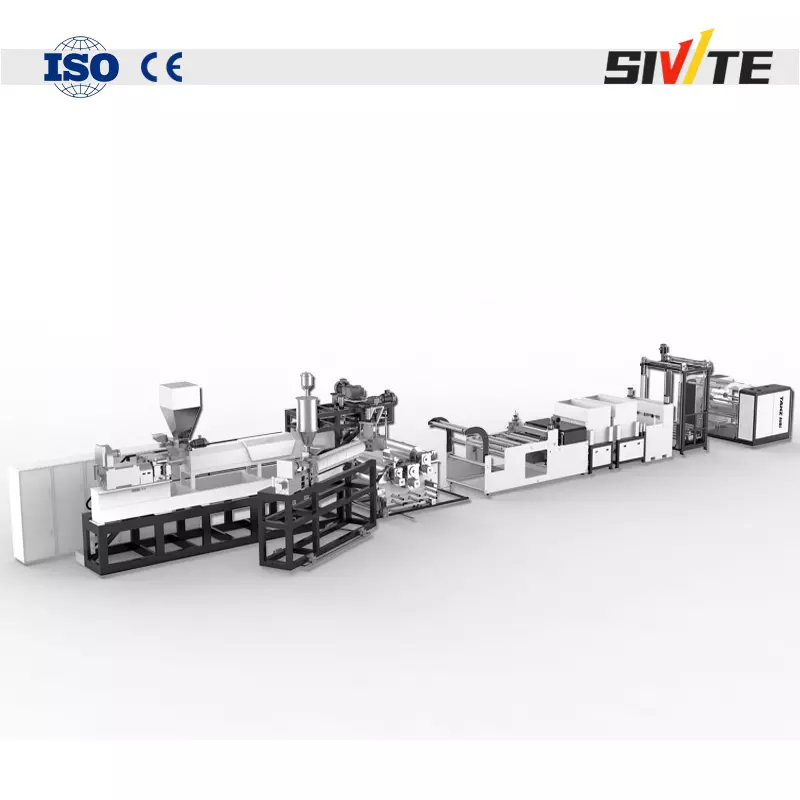

PP PS PET Multi-layer co-extrusion Sheet Production Line
Product Details
The core of the line is our advanced multi-layer co-extrusion system, which can produce up to 5 layers of sheet. Each layer is carefully designed to optimize its barrier properties (oxygen, moisture), mechanical strength and thermal stability. Smart extruders and modular die designs enable seamless material combinations and customized layer thickness and arrangement. Whether producing lightweight rigid sheets for packaging or heat-resistant PET layers for industrial use, our technology ensures uniformity and consistency in each production batch.
>> PP, EVA, EVOH, PS, PE multi-layer co-extrusion barrier sheet production line
In order to meet the increasingly demanding requirements of users for products, we have independently developed double-layer three-layer and multi-layer asymmetric distribution technology, so that the products produced by this equipment can obtain better barrier properties.
>> PP, EVA, EVOH, EVA, PP five or seven layer co-extrusion composite high barrier fresh-keeping packaging sheet
It has excellent gas barrier properties, moisture resistance, and is a plastic packaging material with the best gas barrier properties. Mainly used in jelly packaging, high-end meat, fast food rice and other food packaging, medicine, cosmetics and other packaging.
Energy-saving and high-efficiency, high-speed output
Designed for sustainability and productivity, the line is equipped with an energy-saving extruder and an optimized screw design to minimize power consumption while maximizing output. The high-torque drive system and precision temperature control module ensure rapid melting and homogenization of raw materials, with production speeds up to 1,200 kg/h. Automatic thickness adjustment and real-time monitoring systems further reduce material waste, lower operating costs, and support environmentally friendly production practices.
Equipment parameters
| Model | Suitable material | Sheet Width | Sheet Thickness | Extrusion volume | Designed line speed | Calendar diameter |
| SWT100/45/45-1000 | PET、PP、PS、PE | 800mm | 0.5~2.0mm | 300(kg/h) | 15m/min | φ400mm |
| SWT120/45/30/65-1200 | PET、PP、PS、PE | 1000mm | 0.5~2.0mm | 400(kg/h) | 20m/min | φ400mm |
| SWT150/45/45-1500 | PET、PP、PS、PE | 1200mm | 0.5~2.0mm | 650(kg/h) | 20m/min | φ400mm |

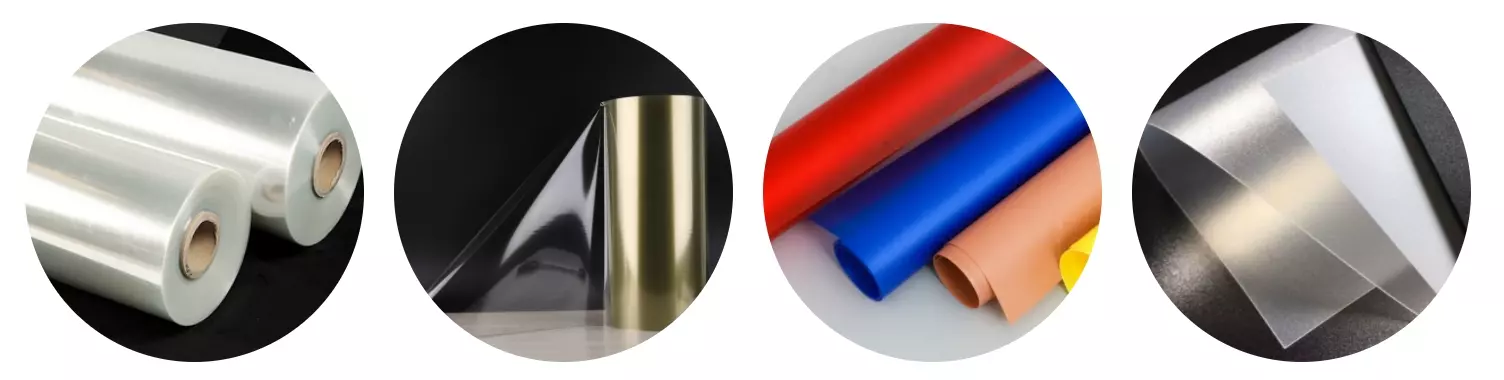

Applications: Cross-industry versatility
From food-grade PP/PE barrier sheets for vacuum packaging to high-clarity PET sheets for medical blister packaging, the line is suitable for countless applications. Its ability to combine recycled materials with virgin polymers also supports circular economy initiatives. Industries such as automotive (interior panels), construction (insulation panels) and consumer goods (disposable tableware) benefit from the flexibility and output quality of this line.
Equipment Features
01.

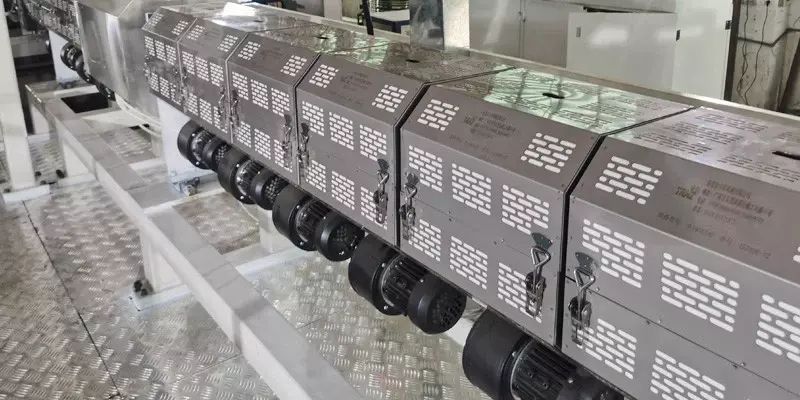

Drying-free exhaust type planetary scre
It has the advantages of forced feeding, high speed, high production capacity and high quality. It is suitable for more than 80% of the recycled materials, maintaining the original toughness of the materials, and is also suitable for PP HIPS PLA....
02.

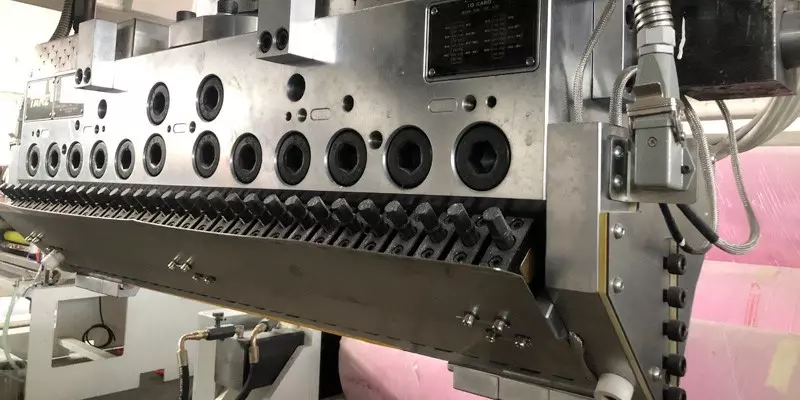

Taiwan imported extrusion die
The extrusion die is made of all-alloy steel, and the runner is chrome-plated and polished, allowing the width of the die to be adjusted at any time according to production needs without stopping the machine.
03.

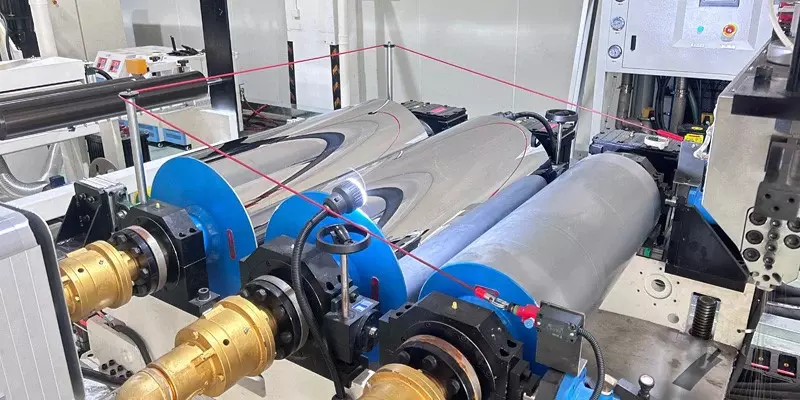

adjustment accuracy up to ± 0.005mm
three-roll calender is designed for horizontal, vertical or 45-degree tilt. The thickness is automatically adjusted, and the mechanical roller has anti-collision protection function. Using electronic handwheel operation.
Production Capacity

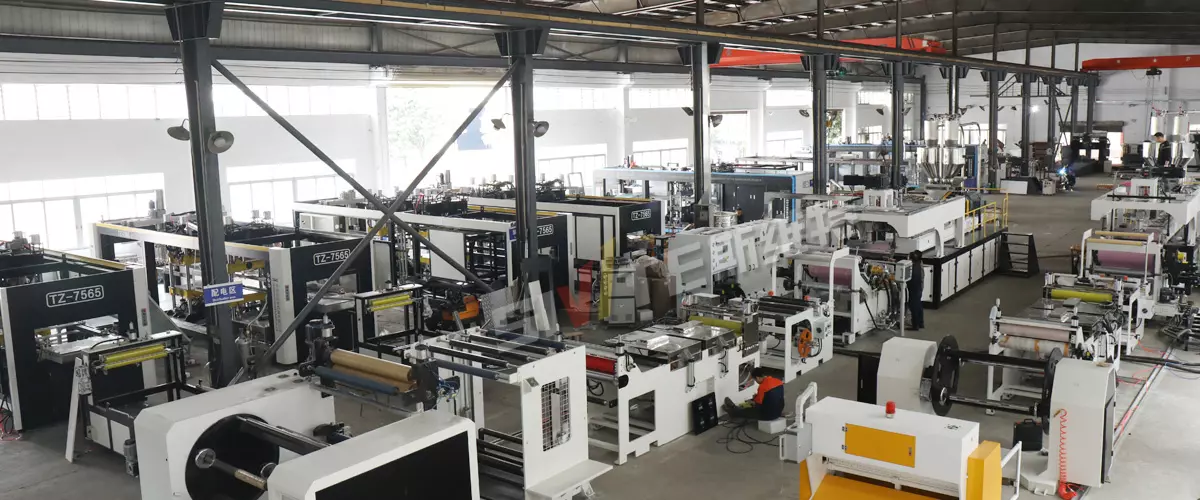

As a leading manufacturer of thermoforming machines and sheet extrusion equipment, we have a strong technical team and excellent quality management system. With a factory covering [10000+ square meters], vertically integrated production lines, combined with advanced automation technology, superb craftsmanship and strict quality control, we provide high-performance machinery to customers around the world.
User-centered design, easy operation
We prioritize operator convenience, with a fully automatic control system driven by a user-friendly PLC and HMI interface. Operators can easily adjust parameters such as temperature, speed, and layer ratio through intuitive touchscreen controls. The line is also equipped with a quick-change device for the die head and roller, minimizing downtime during product changeovers. In addition, the integrated cooling calibration device and high-precision traction system ensure smooth sheet forming and accurate dimensions, even for complex multi-layer structures.
Durability and low maintenance
Our lines are built to last with premium components. Corrosion-resistant alloy screws and barrels extend equipment life, while hardened gears and a rugged frame withstand high-pressure operation. A centralized lubrication system and self-diagnostic alarms simplify maintenance and enable proactive troubleshooting. The line has minimal wear and tear, providing long-term reliable performance, reducing total cost of ownership.
Customization and global service support
We understand that each manufacturer has unique needs, so we provide tailored solutions for layer configurations, sheet widths (up to 2,200 mm) and thickness ranges (0.5-2 mm). Our global service network provides 24/7 technical support, installation training and spare parts supply. Whether you are upgrading an existing facility or building a new production site, our team can ensure seamless integration and continuous operation.
Conclusion: Boost your production capabilities
Investing in our PP, PS, PET multi-layer coextrusion sheet lines means investing in innovation, efficiency and scalability. Backed by decades of engineering expertise, this equipment enables manufacturers to produce high-quality sheets that meet strict international standards. Contact us today to discuss your project needs and find out how our solutions can drive your business in a competitive global market.
