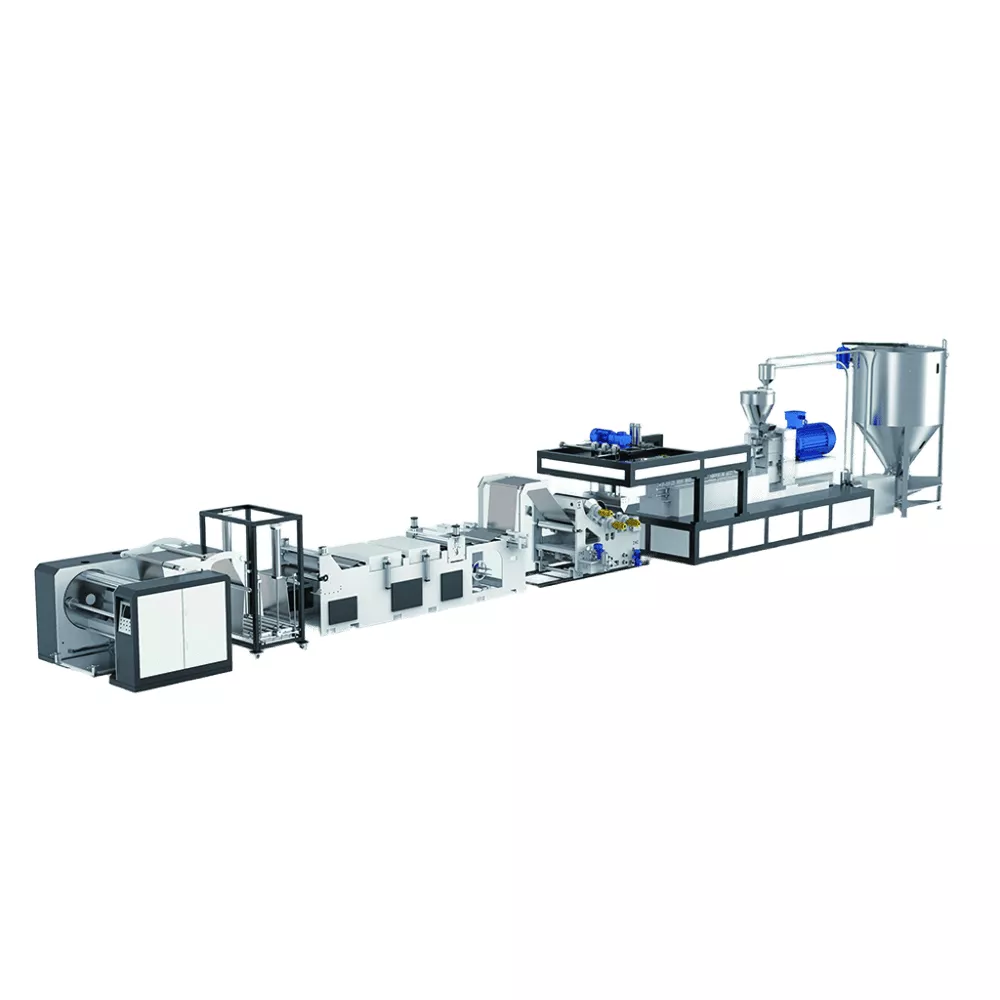

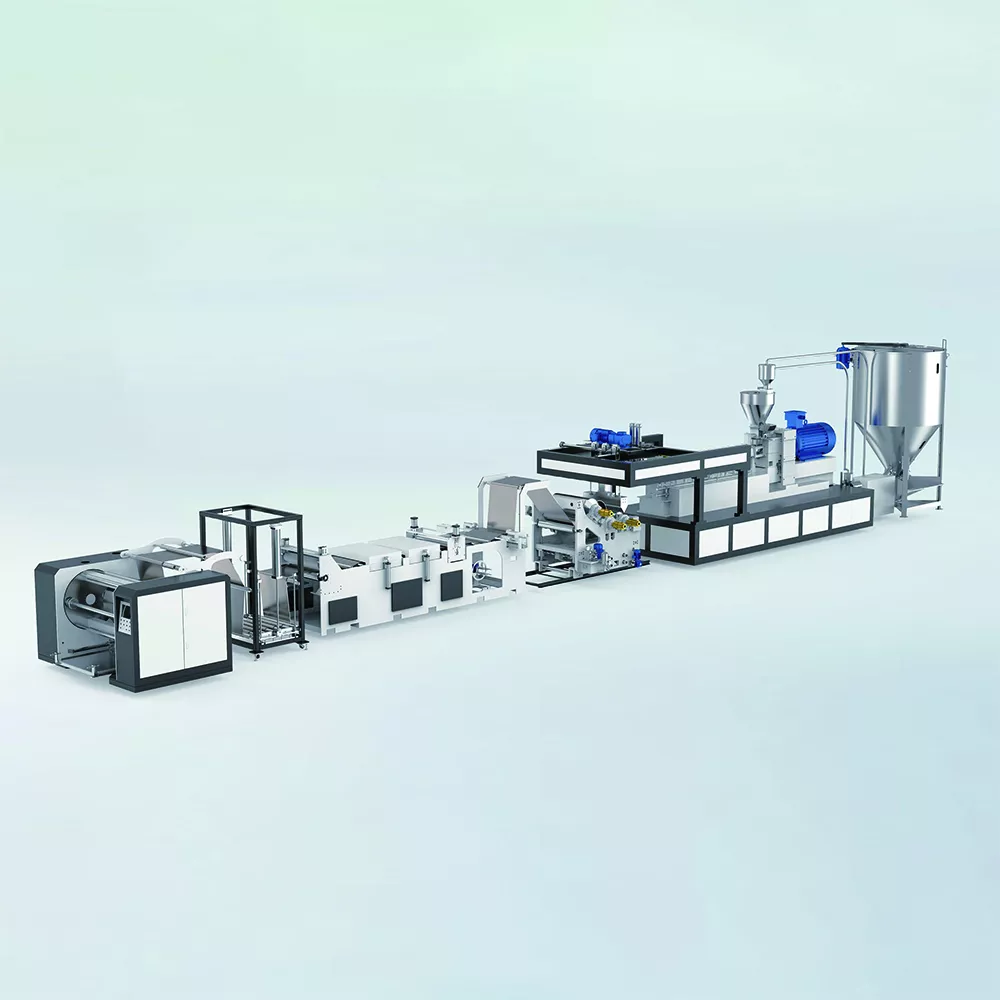

PET Single Screw Extrusion Production Lines

Adopt Taiwan's independently developed high-speed and high-capacity planetary exhaustscrew.No crystallization drying required.

The forming part of the pressure roller is made of alloy steel with different thermal conductivity.

Through special manufacturing technology and heat treatment process,the temperature of the roller is uniform, the heat dissipation speed of the rod surface is fast, the material does not stickto the roller, and the product molding speed is fast,which is suitable for high productioncapacity and high quality applications.

The thickness adjustment ofthe colliding machine sheet adopts an automatic adjustmentsystem,and the mechanical roller has anti-collision protection function. Electronic hand wheel operation is used to achieve quick and easy single-sheet specificationconversion

without cumbersome operations.Sheet adjustment accuracyis up to 0.005mm

The standard machine of the fully automatic sheet winding machine can roll up to 500kilograms ofsheet material with a diameter not exceeding 800mm.Winding machines withlarger weight and diameter can also be customized. Our company has also developed anautomatic winding machine,which can wind two rolls of sheets at the same time with highproduction capaciy

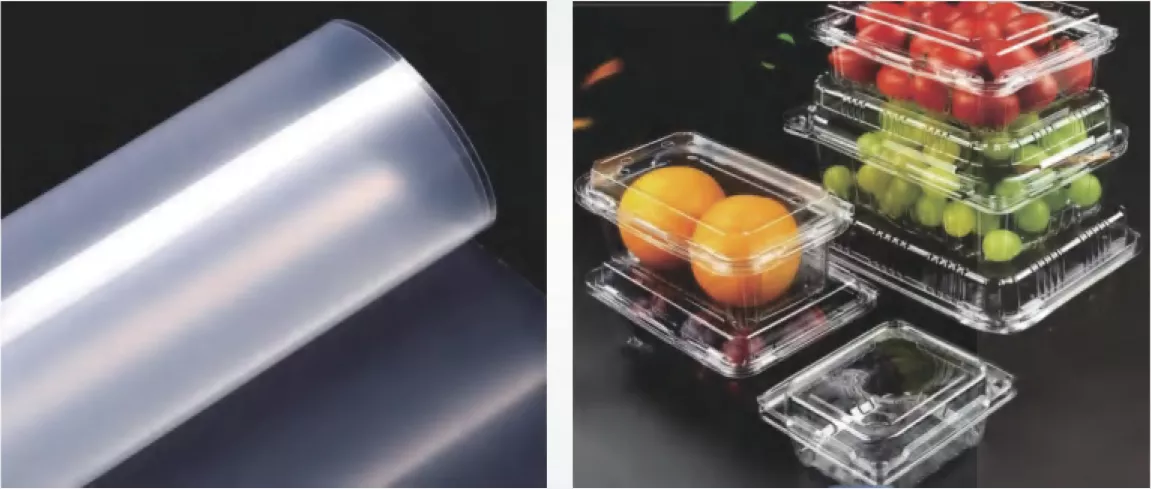

PET plastic sheet has the characteristics of high transparency,being non-toxic and odorless and easy recycling

environmentally friendly,and is especially suitable for easy recycling of PET in food packaging or other packaging fields. PET is currently an ideal thermoforming packaging material and is widely used in suction packaging,food packaging,hardware packaging,pharmaceutical packaging, electron-ic white packaging and other fields.
However,during the extrusion process,PET's hygroscopic properties may reduce product quality. The single-screw model has efficient vacuum exhaust capability. The biggest advantageovertwin-screwextrusion equipment is that the planetary exhaust screw combination structure effectivelyreduces the viscosity loss of PET resin and maintains the original toughness of the sheet.

*Product specifications are subject to change without prior notice.

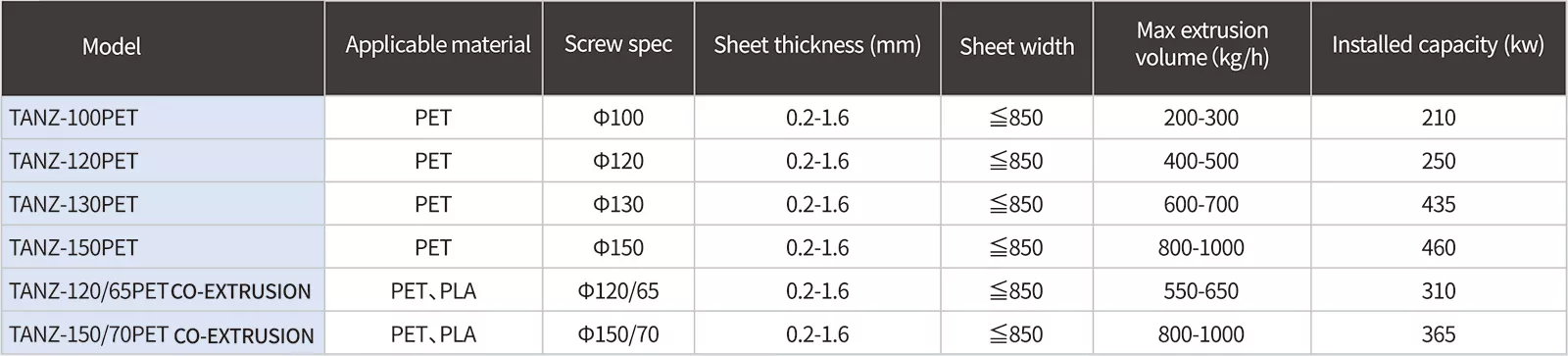

Extrusion volume can be customized.
